Pad printing machine & Kit

Manual pad printing kit

This Pad printing kit includes a Exposure unit with UV lamps necessary for engrave pad prinitng plates in photopolymer. The kit include a DVD video training on our pad-printing machine with step-by-step explanations.

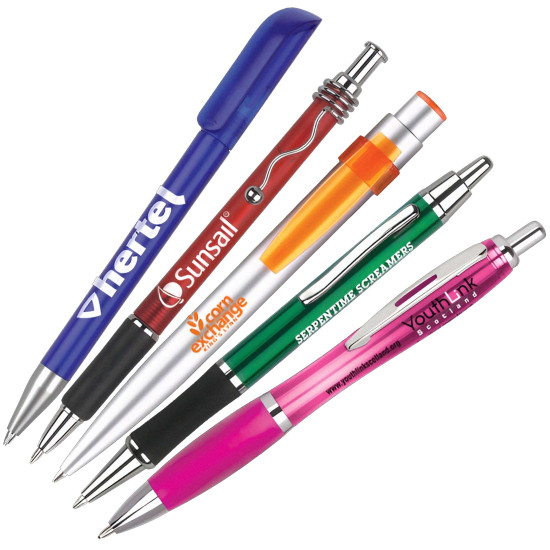

Pad printer machine with closed ink cup and ceramic ring. Ideal for print: pens, promotional items, key chains, metal and plastic spheres etc.

The pad-printing machine has a cliché (mold design known as pad printing cliché) photopolymer 100x200 mm. This wide format makes it possible to simultaneously allow up to 6 clients (in the case of pens and similar objects).

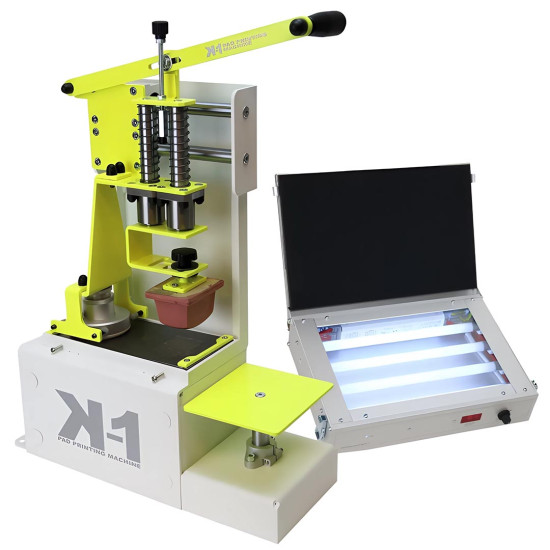

The “Pad printing normal kit” includes:

• Manual Pad printing machine with hermetic closed ink cup and ceramic ring
• Exposure unit with UV lamps
• Starter kit made with: 2 pad-printing inks 250 gr. white - 250 gr. black
• 2 Plates HR type red, size 100x200mm
• 1 Pad 35mm
• Pad Printing tutorial video
• 1 Brush for the developing film
• 1 Screen yeld for the developing film

The "Pad printing kit super" includes:

• Manual Pad printing machine with hermetic closed ink cup and ceramic ring
• Exposure unit with UV lamps
• Starter kit with 6 pad printing inks: 250gr. White - 250gr. black - 250gr. red - 250gr. green - 250 gr. blue - 250gr. yellow
• 10 Plates HR type red, size 100x200mm
• 3 Pads in different sizes to print all that you need
• Pad Printing tutorial video
• 1 Brush for the developing film
• 1 Screen yeld for the developing film

Our pad-printing machine is easy to use and requires no maintenance. With pad printing anything can be stamped from concave spherical objects to flat ones.

The machine can also carry objects: it has an adjustable plate in three axes with a micro registration tool.

This system allows you to print without any waste of ink and with maximum simplicity.

The inkwell has an adjustable magnetic pressure.

Pad Printer Technical data:

• Max printing area 65 x 65 mm, in length it can reach 65 x 120 mm.
• Ink Cup: hermetic, closing magnetic pressure and ceramic ring
• Printing: 1 colour at a time
• Working table plate: adjustable
• Power type: manual.
• Weight: 27 kg.
• Dimensions: 400x220x490 mm.
